WSBC Tapered Roller Bearings: Structural Design, Advantages, and Installation Guid

Time：2025.05.12  Source：Roller Bearings Suppliers

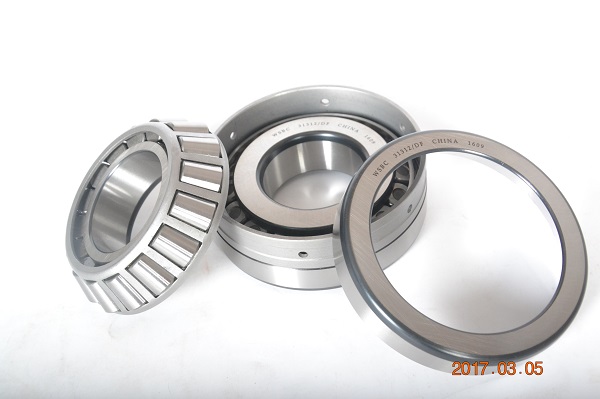

Wuxi Spark Bearing Co.,Ltd is a leading innovator in bearing technology, has unveiled its latest advancements in tapered roller bearings, emphasizing their robust structural design, operational advantages, and critical installation practices. Widely used in heavy-duty industries, these bearings are engineered to handle combined radial and axial loads, making them indispensable in applications ranging from automotive systems to mining machinery. WSBC 31312-DF double row tapered roller bearings online , pls click here :

Structural Design Innovations

WSBC tapered roller bearings feature a conical geometry with inner and outer rings (races) and tapered rollers held by a cage. The rollers and raceways are designed so that their apexes converge at a common point on the bearing axis, ensuring true coaxial rotation and minimizing sliding friction.This design enhances load distribution and reduces wear . Key structural highlights include:

Separable Components: The inner ring (cone) and outer ring (cup) can be installed separately, simplifying maintenance and adjustment.

Adjustable Clearance: Axial clearance or preload can be fine-tuned during installation via nuts, shims, or threaded housings, optimizing performance under varying operational conditions .

Line Contact: Unlike ball bearings’ point contact, the rollers’ linear contact with raceways increases load capacity while reducing stress concentrations .

Operational Advantages

WSBC’s tapered roller bearings excel in demanding environments due to their:

High Load Capacity: Capable of handling heavy radial and axial loads simultaneously, ideal for applications like gearboxes, wheel hubs, and industrial machinery .

Self-Alignment: Compensates for minor shaft misalignment (up to 2 ), ensuring uniform load distribution and extended service life .

Thermal Resistance: Engineered with high-temperature materials and lubricants, they perform reliably in extreme conditions (up to 150°C)

Versatility: Suitable for multiple configurations (face-to-face, back-to-back, or tandem arrangements) across industries such as aerospace, automotive, and mining .

Installation and Usage Guidelines

Proper installation is critical to maximizing bearing performance:

Clean Environment: Install in dust-free conditions to prevent contamination.

Clean shafts and housings thoroughly before assembly .

Axial Clearance Adjustment:

For high-speed/high-load applications, increase clearance to account for thermal expansion .

Use preload for low-speed or vibration-prone systems to eliminate play and enhance stability .

Tooling: Avoid direct hammer strikes on bearing surfaces. Use sleeves or hydraulic presses for even pressure distribution .

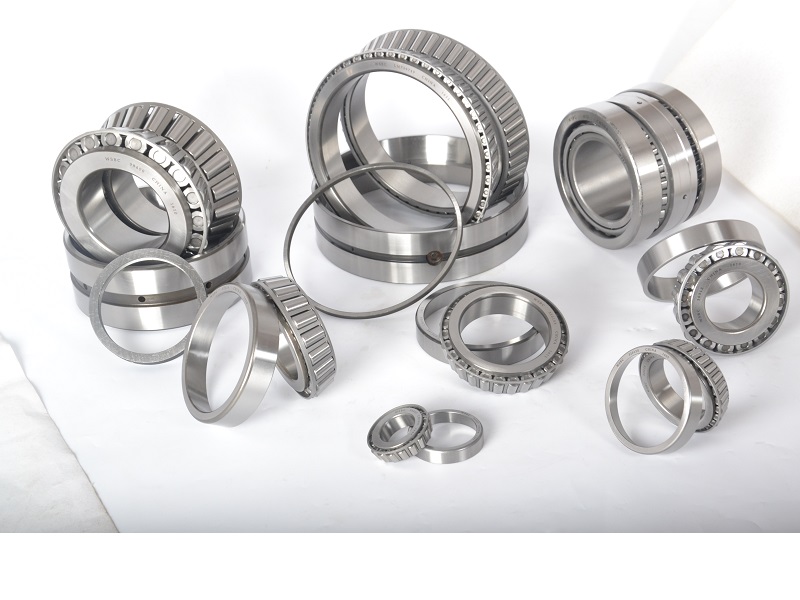

Wuxi Spark Bearing Co.,Ltd can supply different size Tapered roller bearings , if you are interested , welcome you contact us freely .
