Time:2025.05.08 Source:Roller Bearings Suppliers
Thrust tapered roller bearings can only bear one-way axial load and can limit the one-way axial displacement of the bearing, so they can be used as one-way axial positioning. Compared with thrust cylindrical roller bearings, the bearing capacity is large and the relative sliding is small, but the limit speed is low.
Axial spherical roller bearings have two rows of rollers, a common spherical raceway on the outer ring, and two raceways on the inner ring at an angle to the vertical axis of the bearing. Spherical roller bearings are self-aligning, have a high radial load capacity, and can withstand heavy axial loads in both directions. Tapered roller bearings need to be installed face-to-face or back-to-back because they can only withstand axial loads in one direction. To withstand axial loads in two directions, two tapered roller bearings must be installed face-to-face or back-to-back. Spherical roller bearings can withstand axial loads in two directions.

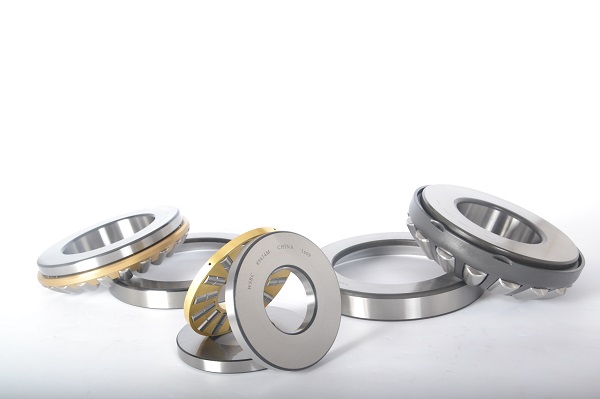

Axial spherical roller bearings also have a shaft ring and a seat ring, the bearing seat on the shaft is pressed against the shaft ring, and the seat ring is installed when installing --- roller ---- shaft ring ----- the bearing seat of the shaft . Thrust spherical roller bearings are mainly used in petroleum drilling rigs, iron and steel machinery, hydroelectric generators, vertical motors, propeller shafts for ships, tower cranes, extruders, etc. The axial load capacity is large, while bearing the axial load, it can also bear a certain radial load. The spherical rollers of thrust spherical roller bearings are arranged obliquely, and the raceway surface of the raceway is spherical, which has self-aligning performance, so it can allow some tilting of the shaft. It can be used in extremely heavy loads, and the allowed speed is higher. Oil lubrication is generally used during use. WSBC trust roller bearings are very popular in different industrial application .
Thrust spherical roller bearings are separate bearings. The load action line forms a certain angle with the bearing axis , and the axial load capacity is large . While bearing the axial load, it can also bear a certain radial load. The spherical rollers of this type of bearings are arranged at an angle , and the raceway surface of the race is spherical , which has the self-aligning performance, so it can allow some tilting of the shaft. It can be used in extremely heavy loads, and the allowed speed is higher. Oil lubrication is generally used during use. Rolling bearings can be divided into radial bearings (mainly bearing radial loads), thrust bearings (only bearing axial loads), and radial thrust bearings (can be Understand both radial and axial loads). Radial thrust ball bearings , bearings of this structure, can withstand radial loads and axial loads in one direction. Find a contact angle of 15 degrees, 25 degrees, and 30 degrees with the inner and outer rings to obtain 40 degrees. The greater the contact angle, the greater the axial load bearing capacity. The smaller the contact angle, the more conducive to high-speed rotation. Usually, the two bearings are opposed, and the internal clearance is adjusted before use.
Performance characteristics of thrust spherical roller bearings
High carrying capacity
A large number of rollers have the best consistency with the ring raceway, which helps the bearing to bear heavy axial and radial loads simultaneously.
Allow misalignment
Spherical roller thrust bearings are self-aligning and can withstand misalignment .
Separate design
Thrust spherical roller bearings are separate type, so that the seat ring can be installed and removed independently of the shaft washer and roller and cage assembly. In addition, this facilitates maintenance inspections. The cage design and the best consistency of the roller and washer raceways make the bearings suitable for relatively high speeds.
long lasting
The special roller shape reduces the edge stress at the roller / raceway contact.
Low friction
The optimized roller end / rib contact keeps the heat generated by friction at a low level even at high speeds.
How to install longer service life?
Matching method: interference fit of shaft and bearing box with shaft ring and seat ring
Installation method: Install the shaft ring by heating
Before installing the bearing, please read all the instructions carefully. The instruction manual contains a variety of optional tools and measurement methods. When selecting the tool recommended in the instructions for use, please check its availability based on the size of the bearings and other related components actually used.
Precautions:
1.Install the bearings in a clean environment. Check the bearing box, shaft and other related components of the bearing to ensure that they are clean.
2.Clean up the oil holes and oil grooves used in the oil injection method.
3.The installation and disassembly of rolling bearings sometimes involve the movement of heavy objects, the use of tools, other equipment, or the use of high-pressure oil. To avoid accidents, personal injury or property damage, please follow the instructions carefully.
Before installing the bearing, check the dimensional and shape tolerances of all components in contact with the bearing.The diameter of the cylindrical journal is usually measured with a micrometer at four points on each of the three planes; the diameter of the inner hole of the cylindrical bearing box is usually measured using an internal gauge at four points on each of the three planes. Filling in measurement records and archiving will facilitate future tracking work. Measure the length of the mating surface of the bearing, shaft and bearing housing or the length of the matching sleeve. Based on the measurement results, calculate the axial clearance of the bearing configuration after installation.After the measurement is completed, install the bearing.
Wuxi Spark Bearing Co.,Ltd is professional thrust Spherical Roller Bearings supplier, we can make sure high quality and fast delivery , if customer interested in our bearings , pls do free to contact us .
